PWR 5.7

• Permitted Microgrid Installations
• Gas Processing Plants
• Gas-E Compression
• Production
• In-Field Power
• E-Drilling
• eFrac/Electric Frac
• Facility Power
• Chemical Plants
• Temporary Emergency Power
• Industrial Power Installations

• Prime Mover: Solar Taurus 60
• Power Output: 5.7MWe (ISO Conditions)
• Voltage/Frequency: 13.8kV @ 60HZ (AVR Capable To 12.47kV)
• Power Factor: 1PF to .8PF
• Emissions: 9PPM NOX | Permittable in TX & NM
• Emissions Technology: Dry Low Emissions Technology (DLE)
• Fuels: Natural Gas (Processed Field Gas, Pipeline and CNG)
• Gas Quality: Wide Range of BTU (950-1450, w/Liquids Drop Out)
• Heat Rate: 10,830Btu/kWe-hr

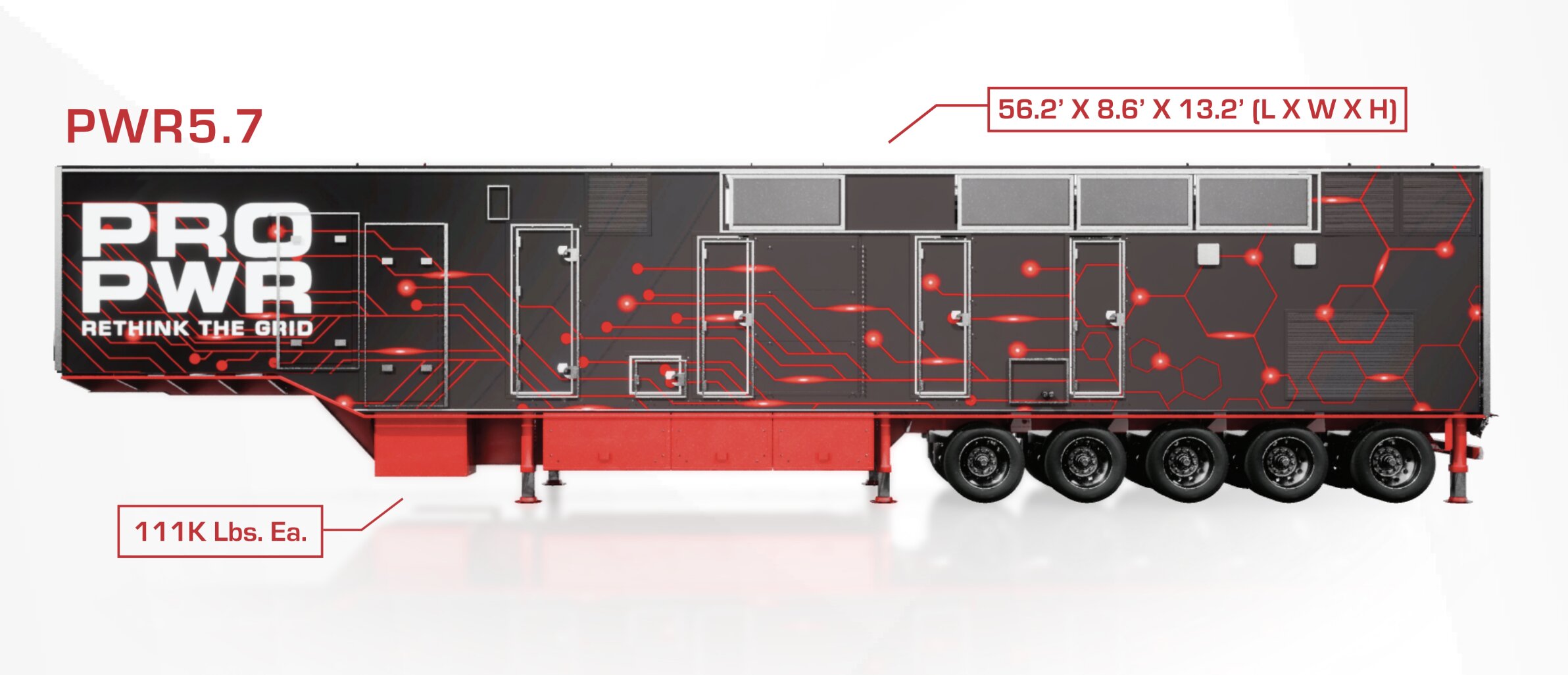

• Dimensions: 56.2’ x 8.6’ x 13.2’ (L x W x H)
• Weight: 110, 960lbs (Without Tractor)
• Gas pressure requirements: 350-500PSI at inlet flange of PWR5.7

FEATURES

• Single Trailer, Utility Grade Gas Turbine Generator
• For installations ranging from: 4MW – 50MW+
• Low maintenance intervals and high engine TBO
• Self-Sustained Auxilaries with 480V
  On-Board Transformer
• Mobile Connectivity with Remote Monitoring
  and Operations Capabilities via LIVE Center
• Exceeds Permitted Emissions Standards
  in Texas and New Mexico
• Designed for continuous duty operations in
  base load and variable load applications
• Multi-Unit parallel and load sharing capabilities
  with various PWR asset types
