PWR1.2BE

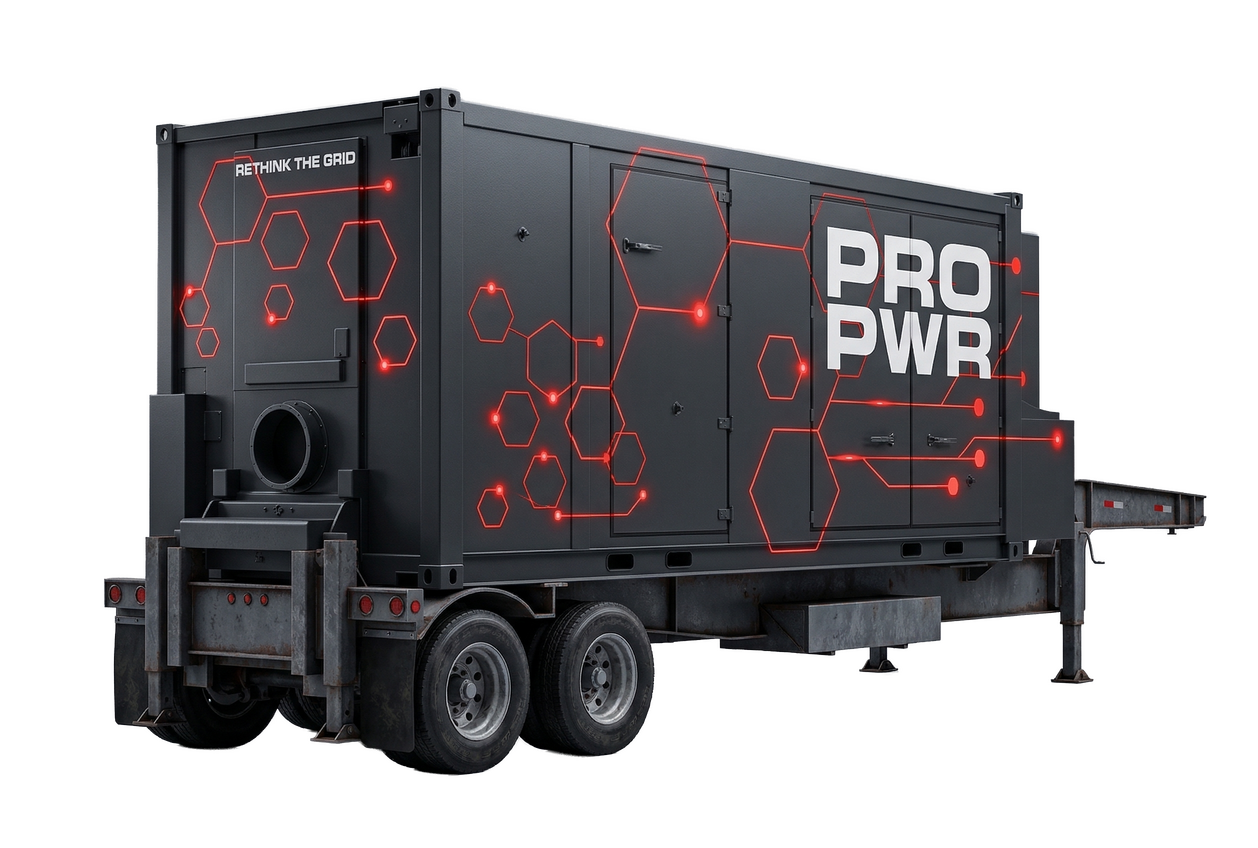

The PWR1.2BE is a 1.2mw/672kwh modular, rapidly deployable hybrid energy storage system designed to work seamlessly in hybrid setups.
BY COMBINING HIGH-PERFORMANCE BATTERIES WITH NATURAL GAS GENERATION, IT DELIVERS OPTIMIZED EFFICIENCY, REDUCED OPERATING COSTS, AND ENHANCED RELIABILITY. THIS SYSTEM PROVIDES TRANSIENT ASSIST, GRID STABILIZATION, AND FLEXIBLE POWER MANAGEMENT FOR DEMANDING APPLICATIONS—HELPING OPERATORS LOWER EMISSIONS, MANAGE LOAD VARIABILITY, AND ACHIEVE SUPERIOR POWER QUALITY.
APPLICATIONS
- Grid firming and stabilization
- Generator transient assist
- Black start capability/Rig up power
- Reserve power capacity
- Hybrid microgrid integrations
TECHNICAL SPECIFICATIONS
- System Output Power:
- Continuous (10min): 1,000 kW
- Overload (10 mi): 1,220 kW
- Energy Capacity: 672 kWh (Li-Ion NMC)
- Battery Capacity: Li-ion NMC
- Voltage: 480 & 600VAC (60 Hz), THD < 3%
- Ambient temperature range (-40°C to +50°C)
- Inverter Model: Bi-directional power inverter

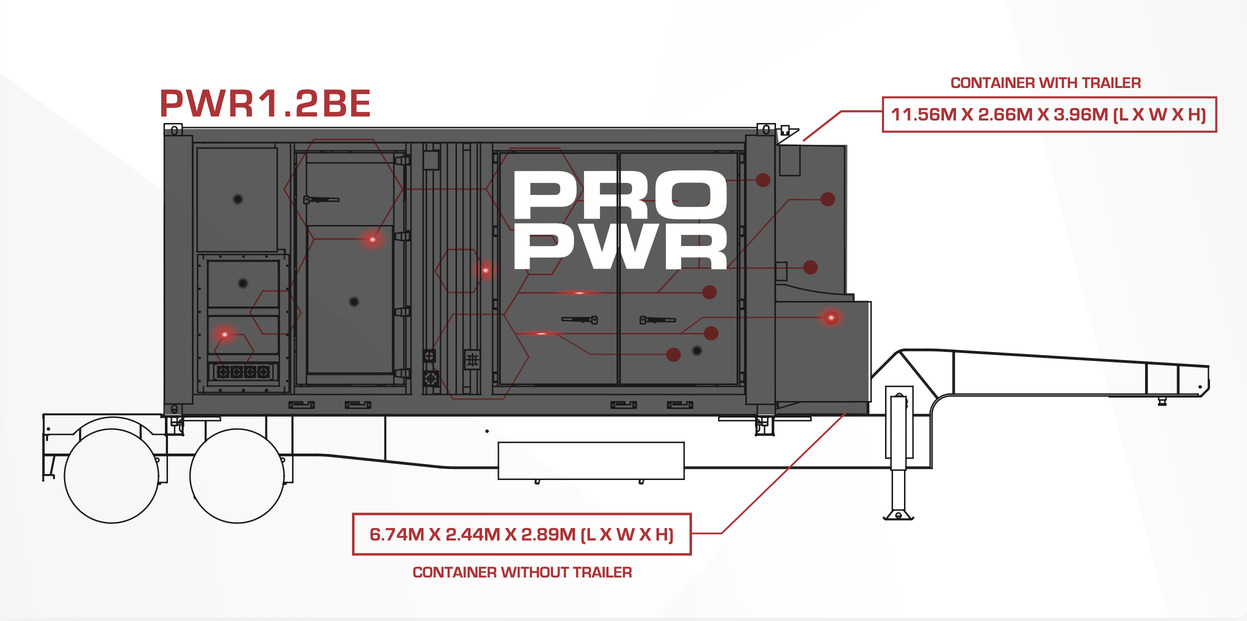

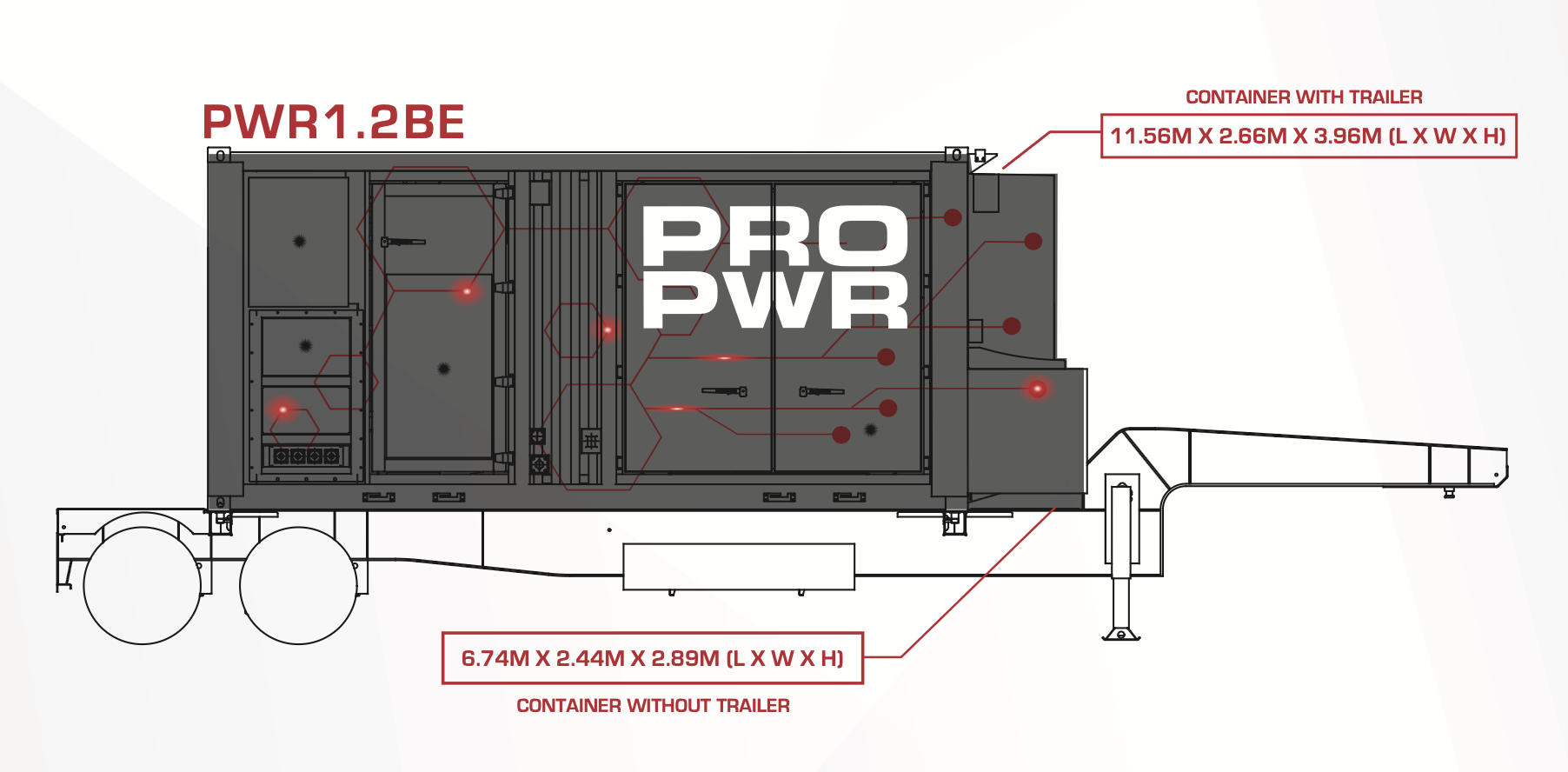

- Dimensions:
- With trailer: 37.93’ L x 8.73’ W x 12.99’ H
- Without trailer: 22.13’ L x 8.00’ W x 9.50’ H
FEATURES

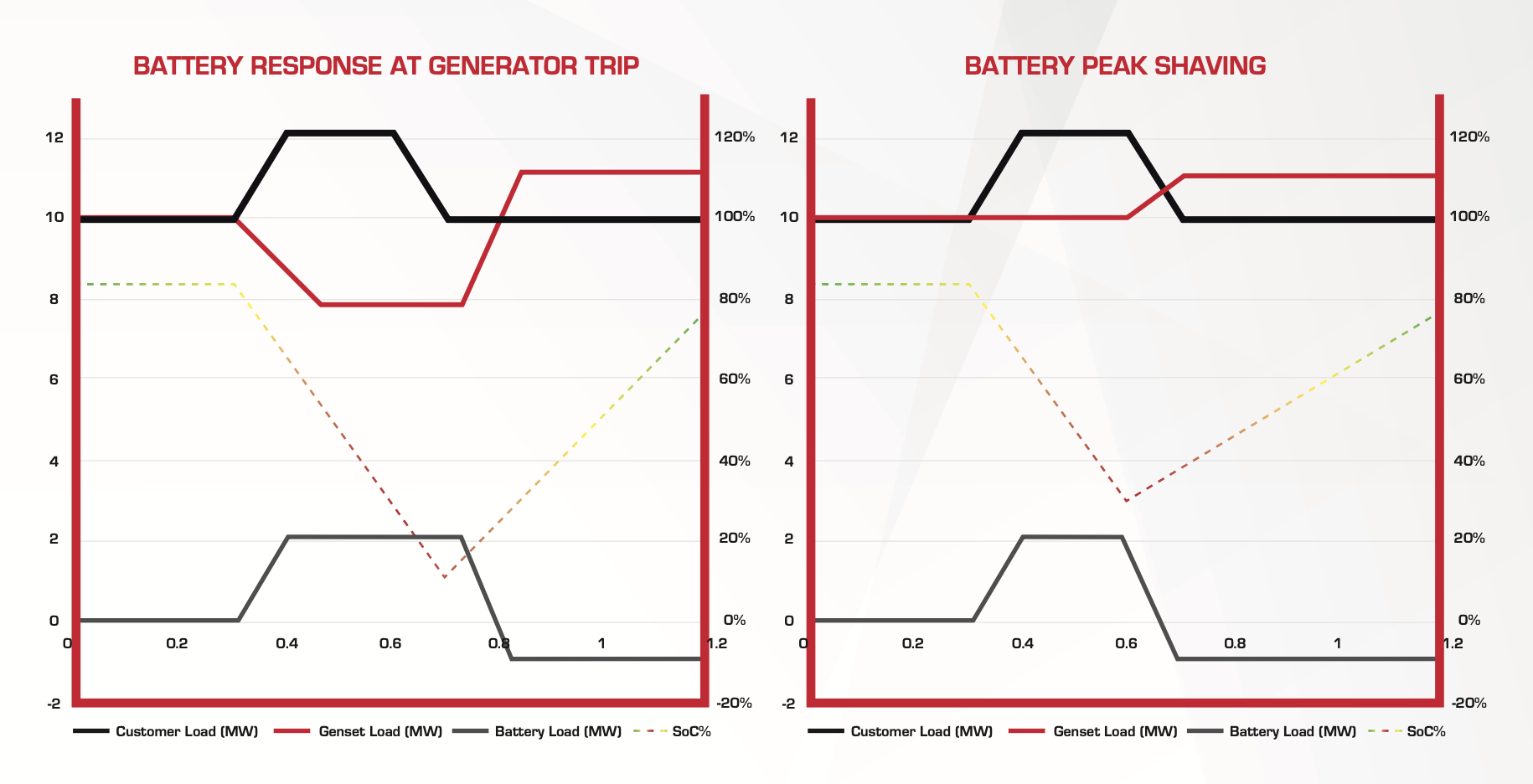

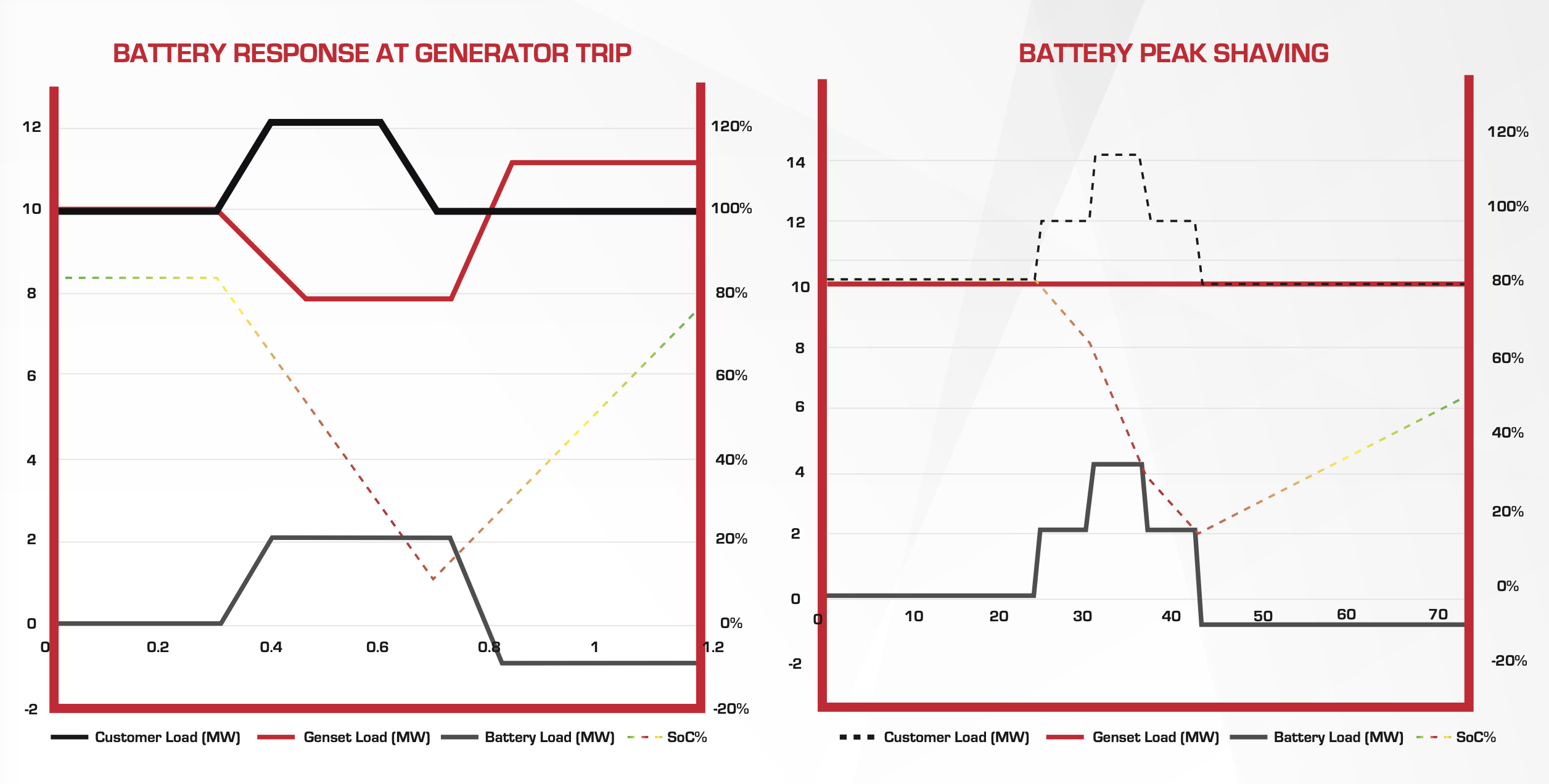

- Transient ride-through and stabilization
- Seamless mode transfer
- High C-rate (2C) capability for rapid charge/discharge
- Plug-and-play parallel capability (up to 100+ MW)
- Intelligent energy storage management and EMS integration
- Static VAR compensator for grid support
- Wide ambient temperature range (-40°F to +122°F)
- Integrated fire suppression and HMI touchscreen
- Remote monitoring and control via Modbus TCP/IP
