Equipment
PROPWR’s modern standardized fleet consists of best-in-class technology manufactured by OEM’s with extensive service networks.
As a service organization, we choose partners who share our desire to deliver on service quality excellence.
Our fleet consists of: power generation assets, gas processing equipment, electrical gear, balance of plant as well as managing spare parts inventory, supply chain and asset selection is critical to serving a wide variety of industries and installations.
PROPWR

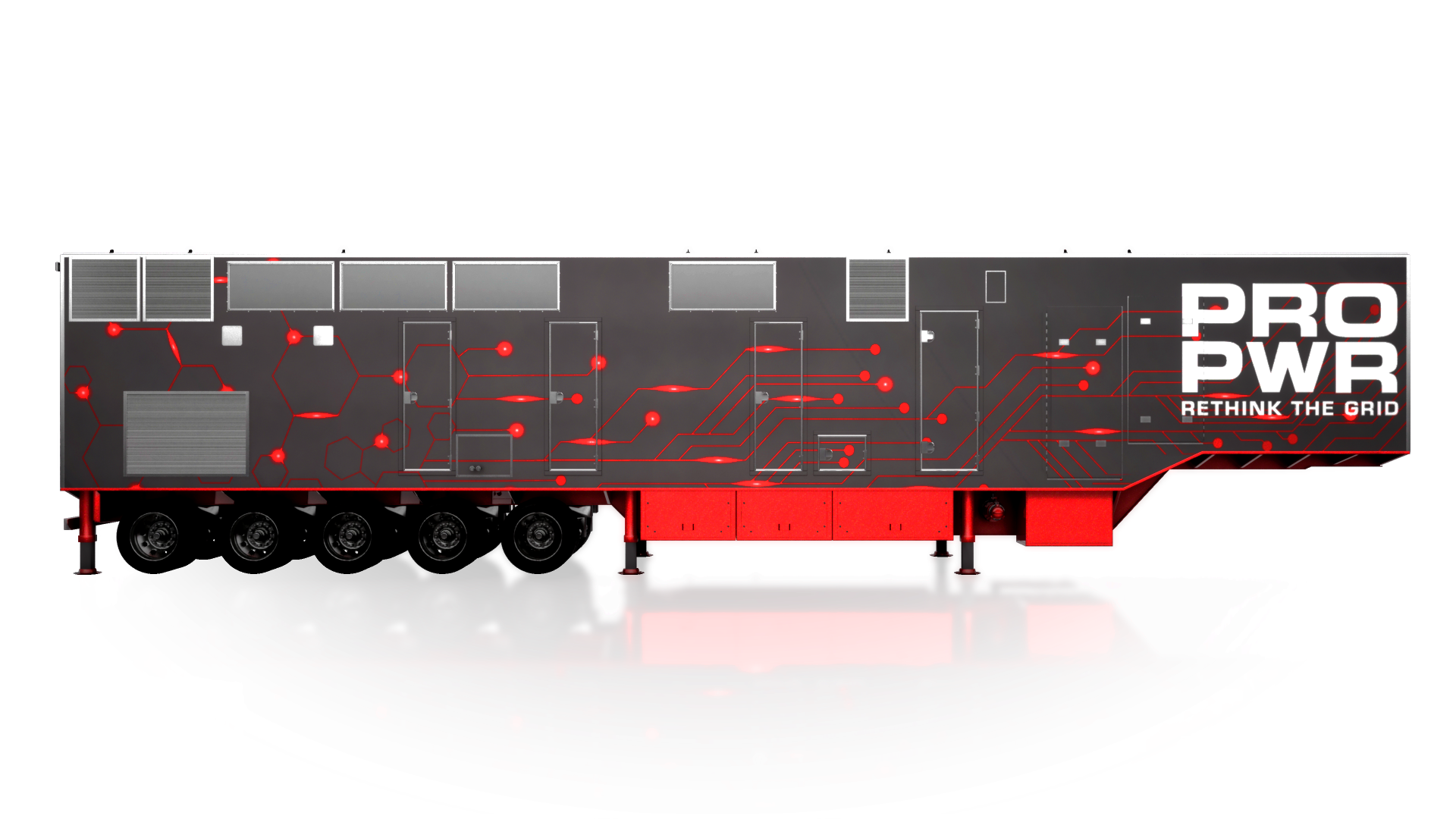

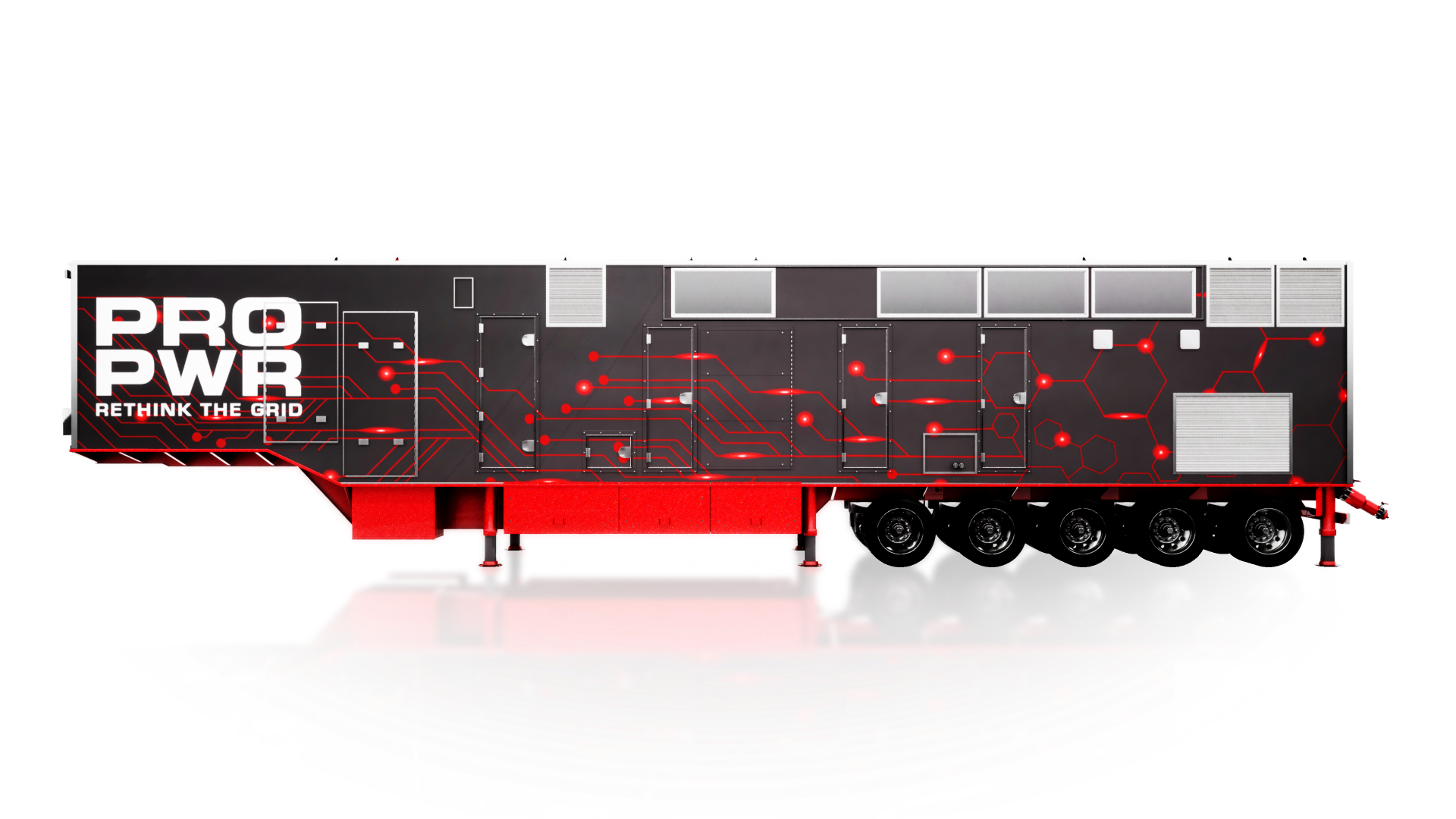

Simple Cycle Mobile Gas Turbine Generator Packages
PWR5.7
Technical Specifications
- Prime Mover: SMT60 (Taurus 60)
- Power Output: 5.7MWe (ISO Conditions)
- Voltage / Frequency: 13.8kV @ 60HZ (AVR capable to 12.47kV)
- Power Factor: 1PF to .8PF
- Emissions: 9PPM NOX | 15PPM CO | 15PPM UHC
- Emissions Technology: DLE – Dry Low Emissions (no water or SCR) to meet permitted requirements in Texas and New Mexico
- Fuels: Natural Gas (processed field gas, pipeline and CNG)
- Heat Rate: 10,830 Btu/kWe-hr
- Dimensions: 56.2’ x 8.6’ x 13.2’ (L x W x H)
- Weight: 110,960 lbs (without tractor)
- Applications: Permitted Microgrid Installations, Gas Processing Plants, Gas E-Compression, Production, In-Field Power, Drilling, eFrac/Electric Frac, Facility Power, Chemical Plants, Temporary Emergency Power, Industrial Power Installations.
- Features: single trailer utility grade gas turbine generation asset, self-sustained auxiliaries with 480V on-board transformer, mobile connectivity with remote monitoring and operations capabilities via LIVE Center. Meets permitted installations in New Mexico <15PPM NOX (NMED) and Texas <25PPM NOX (TCEQ).
PROPWR

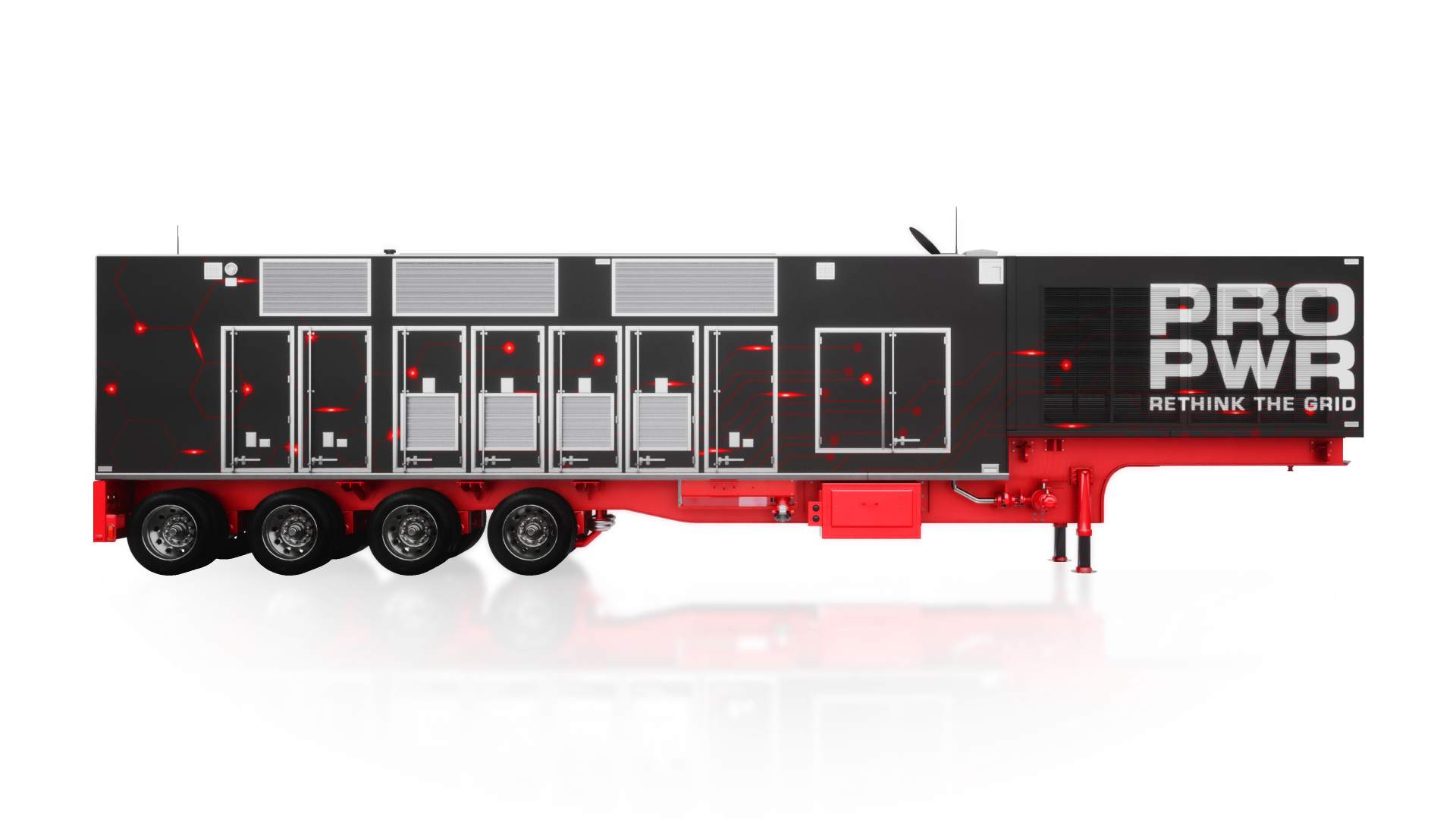

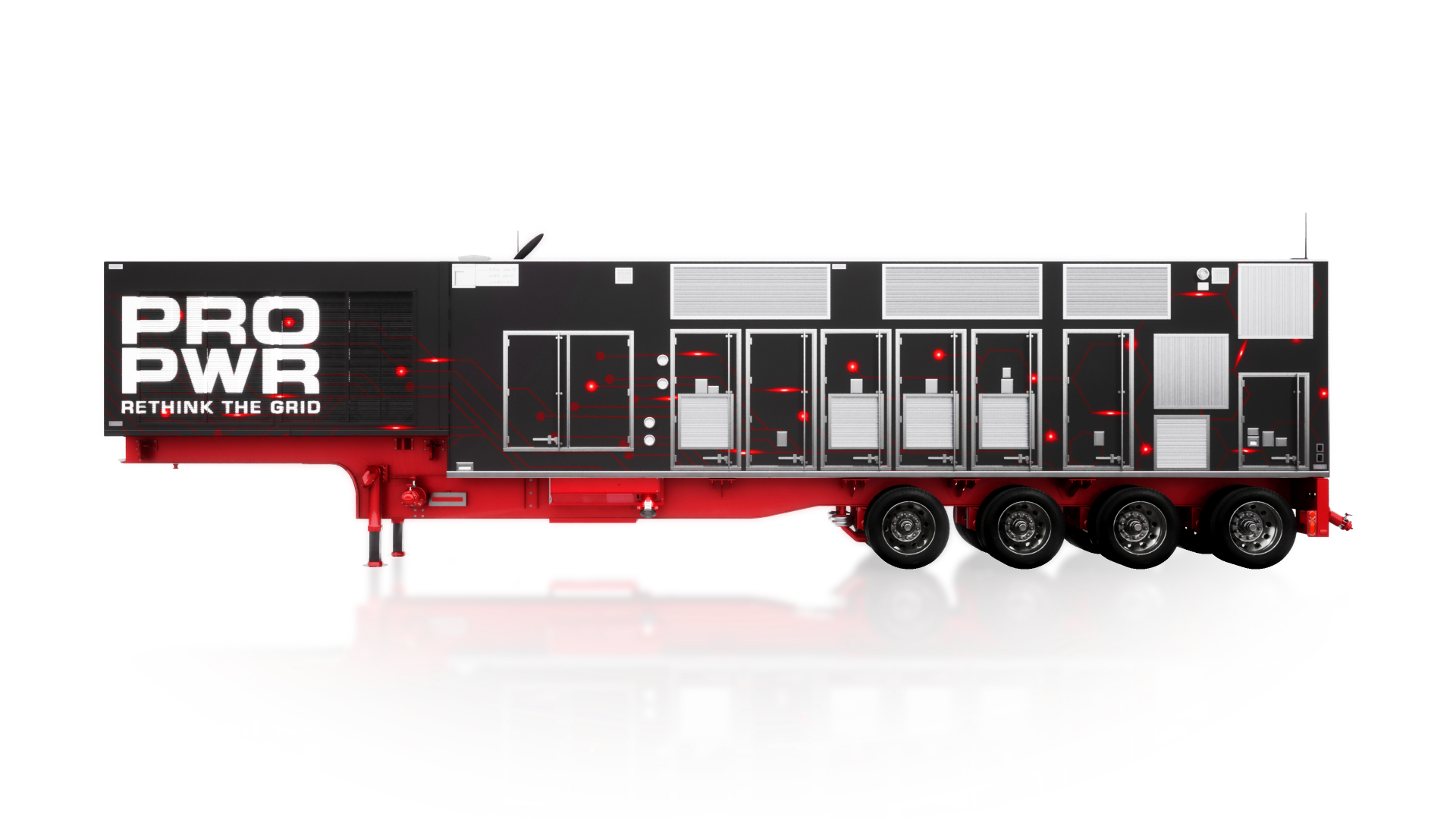

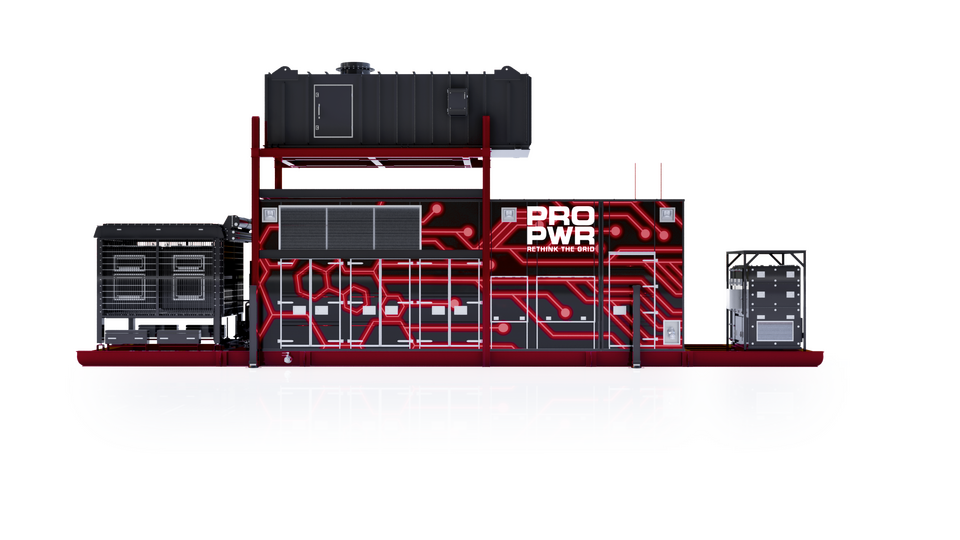

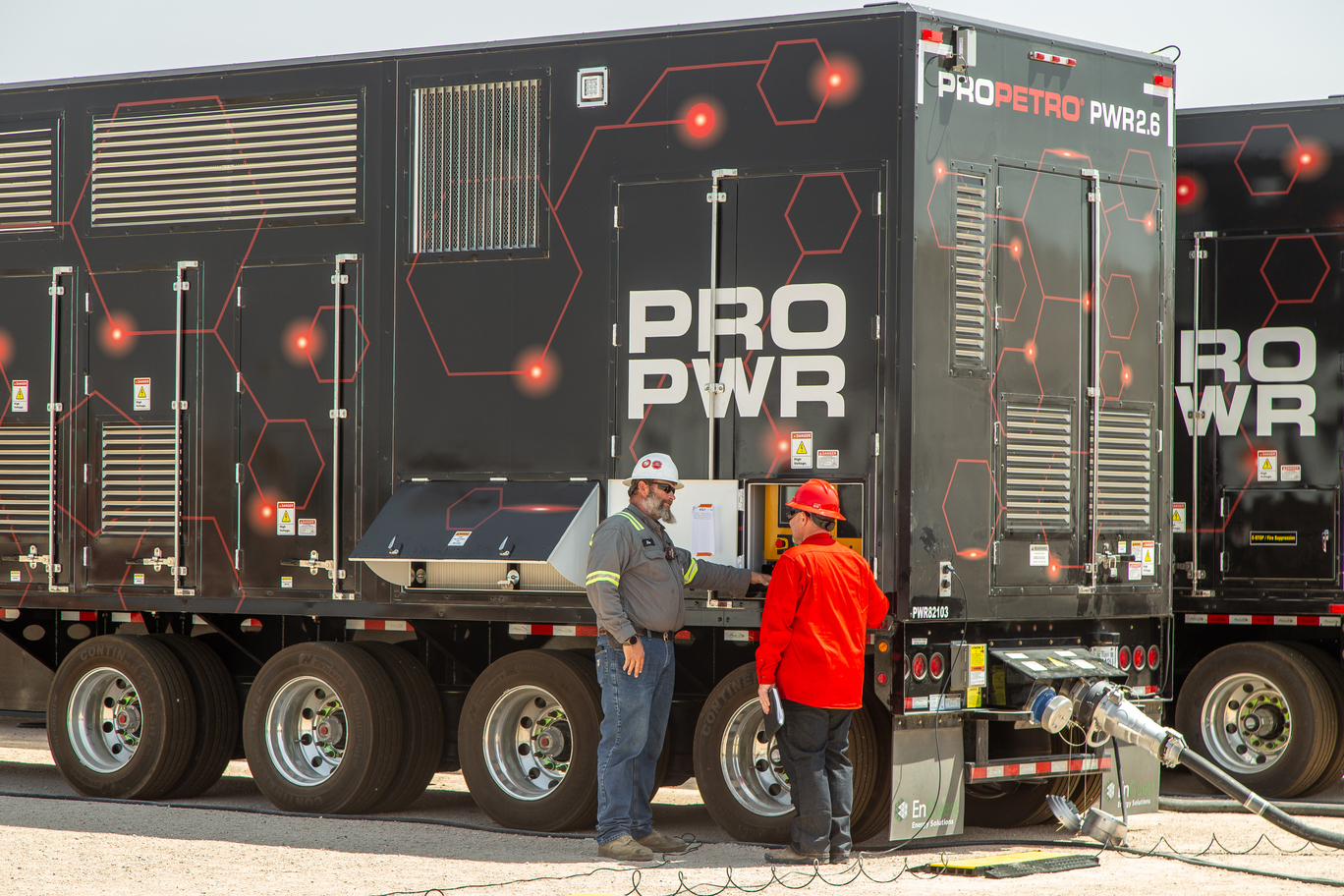

Nat Gas Recip Mobile Generator Packages

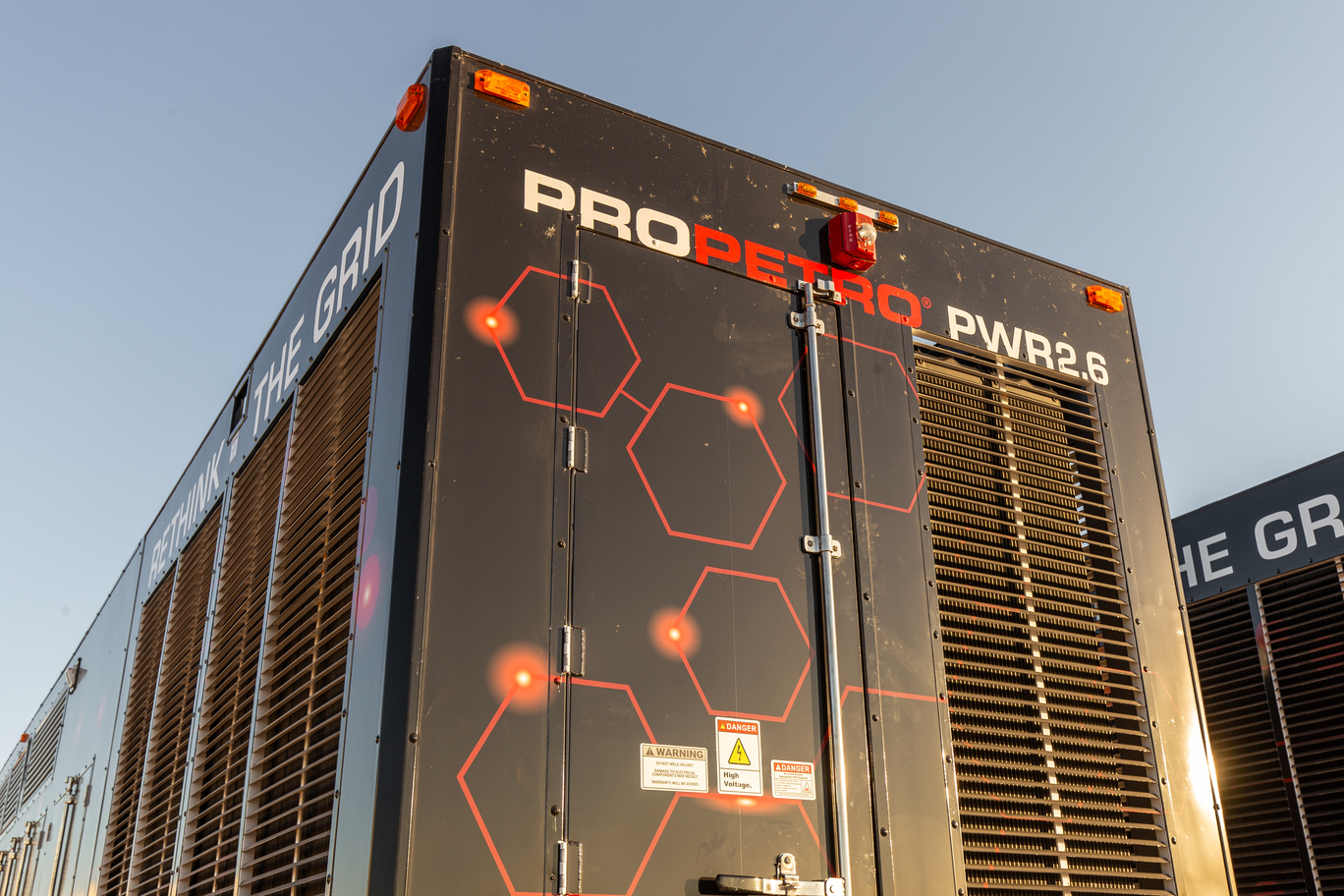

PWR2.6
Technical Specifications
- Prime Mover: Caterpillar G3520 Gas Recip
- Power Output: 2.6MWe
- Voltage / Frequency: 13.8kV @ 60HZ (AVR capable to 12.47kV)
- Power Factor: 1PF to .8PF
- Emissions: 1G BHP-HR NOX | EPA Certified Non-Road Mobile
- Emissions Technology: Lean Burn Engine Technology
- Fuels: Natural Gas (processed field gas, pipeline and CNG)
- Heat Rate: 8,949 Btu/kWe-hr
- Dimensions: 53’ x 8.6’ x 13.2’ (L x W x H)
- Weight: 130,000 lbs (without tractor)
- Applications: eFrac/Electric Frac, Microgrid Installations, Gas Processing Plants, Gas E-Compression, Production, In-Field Power, Drilling, Facility Power, Chemical Plants, Temporary Emergency Power, Industrial Power Installations.
- Features: single trailer utility grade nat gas recip generation asset, self-sustained auxiliaries with 480V on-board transformer, mobile connectivity with remote monitoring and operations capabilities via LIVE Center. Meets permitted installations in Texas (TCEQ) at 1G/BHP-Hr. NOX and EPA NRM emissions standards.
PROPWR
Gas Processing and Ancillary Equipment
Field Gas Processing Skid
Gas Distribution Manifolds, Hoses and Valves
Gas Coalescing Filter & Heater Skid
Additional ancillaries and gas balance of plant
Technical Specifications
- Natural Gas Types: Raw Field Gas, Produced Gas, Flare Gas, Gathering Gas
- BTU Range: 1050-1600BTU
- Volume MMCF/Day: 1.5MMCF/D – 6MMCF/D
- Inlet Pressure: 150-600PSI & 650-1200PSI
- Outlet Pressure: 125-600PSI
- Technology: Mobile Refrigeration & JT Process Skids
Flange Interfaces: 2” – 4” inlet flange to process skids available - Auxiliary Power Needs: 120V/240V or 480V (C1D2)
- Ancillary Scope: Gas manifold, pipe, flexible steel hose, valves, coalescence filter, gas heater, liquid capture drip tank.
- Applications: eFrac/Electric Frac, Microgrid Installations, Production, CTB’, In-Field Power, Drilling, Facility Power and other applications requiring gas conditioning.
- Benefits: Compact package removes heavy constituents and NGL’s from source gas, conditions fuel to meet OEM quality standards. Reduces pressure, heats gas and manages moisture content. Gas processing leverages cheap and readily available in-field fuel while optimizing performance, protecting asset integrity while improving system efficiency (holistic efficiency and emissions benefits).
PROPWR
Electric Gear
Technical Specifications
- Power Transformers: SST, M-SST, GSU, Pad Mount and Oilfield Drilling Transformer Skids
- High-Side Voltage: 34.5kV, 24.9kV, 23kV, 22kV, 13.8kV, 12.47kV
- Low-Side Voltage: 480V, 600V, 4160V, 12.47kV, 13.8kV
- Capacity: 5MVA to 30MVA+
- Note: Additional transformer options are available for contract, subject to equipment availability.
PROPWR
Operations Support Equipment
Technical Specifications

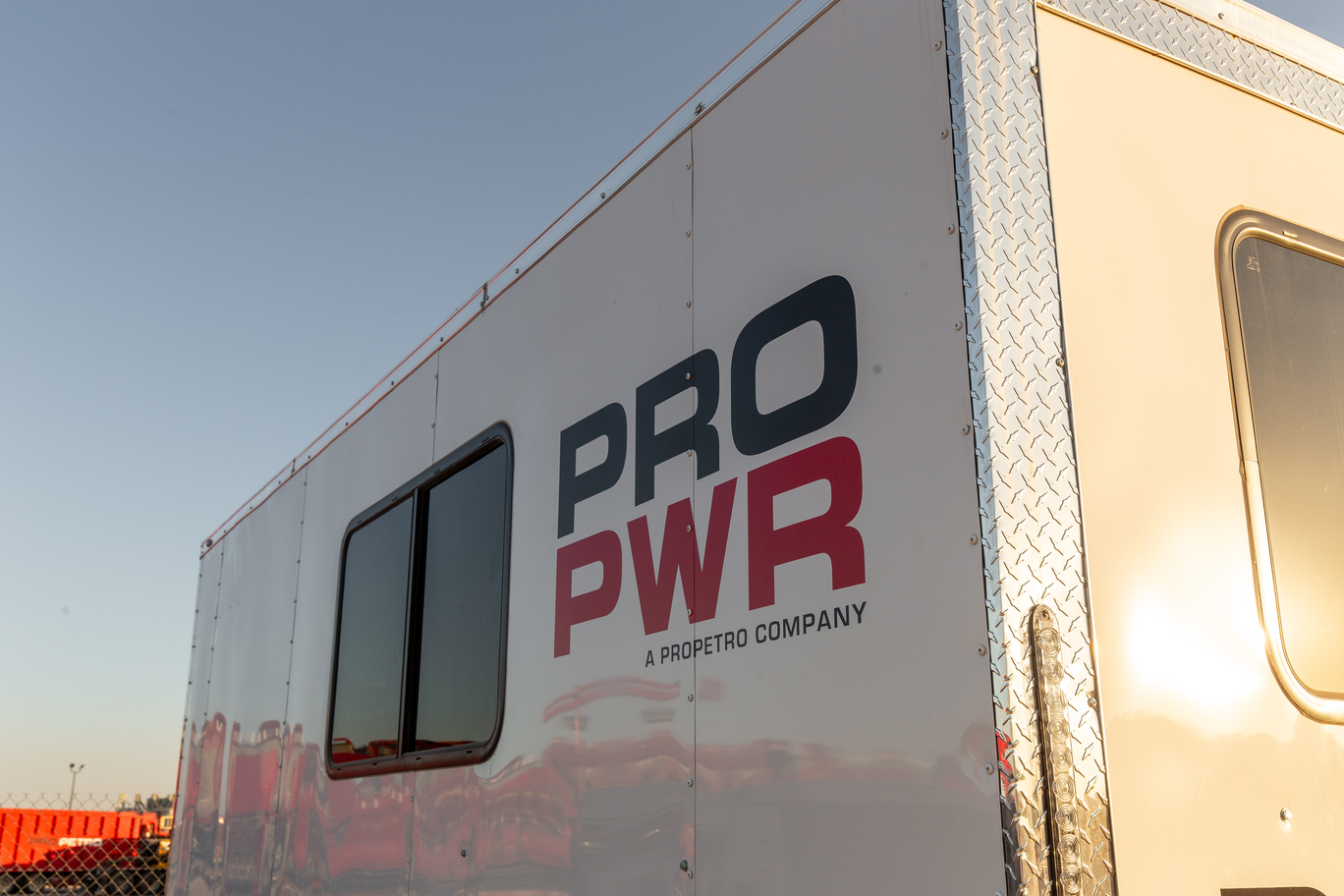

- Data Van / Operators Console: Mobile or semi-permanent
- Maintenance Trailer / Maintenance CONEX: Storage for parts, tooling and materials for equipment scope
- Heavy Haul Tractors: Capable of mobilizing PROPWR equipment, operated by CDL drivers
- Additional Equipment: Heavy Trucks, Field Trucks, Cranes, and Material Handling Equipment
- 307 Facility: >100 acres, >300k sq. ft under-roof, large rig-up yard, test line capabilities, maintenance shop with heavy overhead cranes, managed fleet parts distribution and and maintenance, in-house oil and fluids sample testing laboratory.
- Benefits:
Single source provider capable of transporting, mobilizing and managing tactical operations remotely for fleet operations (no third-party trucking).
Large in Basin facility (Midland, Texas – Permian Basin) capable of performing advanced maintenance tasks, engine and component swings and equipment repairs.
Parts stocked in large managed distribution warehouse utilizing cloud platform integrations for demand forecast planning and effectively managing inventory availability and throughput.
